Handheld Meters

Digital versatility in the palm of your hand


Powerful meter design with IP67 rating and shock & scratch-resistant housing in combination with digital sensors brings flexibility and dynamic measurement experience.

LAQUA PH210

Overview

pH mV(ORP)

 Waterproof and dustproof (IP67 rated) Shock and chemical resistant body case

*This product is available in Asia Pacific, Europe, Middle East and Africa region.

Features

  • Automatic pH calibration - up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
  • 0.01 pH resolution
  • Offset and average slope display
  • Automatic / manual temperature compensation and temperature calibration function
  • ORP calibration option
  • °C & °F temperature readings
  • Auto log data; built-in memory can store up to 500 data
  • Auto shut-off (programmable: up to 30 minutes)
  • Auto stable, auto hold, and real time measurement modes
  • Calibration alarm (programmable: up to 90 days)
  • Built-in electrode holder allows 2 electrodes to be attached
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Powered by 2 x AA batteries
  • Packaged with electrode and calibration solutions in carrying case
  • 3 years meter warranty

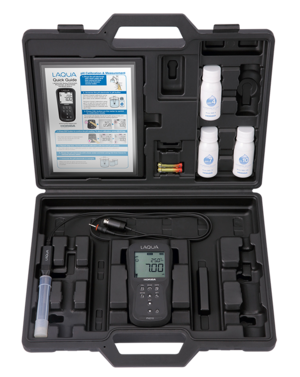

Meter Kit Available

PH210-K





Package Details:

  • LAQUA PH210 pH/ORP/Temp meter
  • 2 x AA batteries
  • Manual and quick guide
  • 9652-10D plastic-body, gel-filled pH electrode with integrated temperature sensor
  • pH 4.01, 7.00, 10.01 buffers (60ml each)
  • Carrying case

PH210-KN: Kit with pH 4.01 / 6.86 / 9.18 NIST buffers (60ml each) is available upon request.


Manufactured by HORIBA Advanced Techno

Specifications

Model

LAQUA PH210

pH/ORP/Temperature (°C/°F)

pH Range

-2.00 to 16.00 pH

Resolution

0.01 pH

Accuracy

± 0.01 pH

Calibration Points

Up to 5 (USA & NIST) / Up to 6 (DIN)

Buffer Options

USA, NIST, DIN

ORP Range

± 2000 mV

Resolution

0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)

Accuracy

±0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)

Calibration Option

Yes

Temperature Range

-30.0 to 130.0 °C / -22.0 to 266.0 °F

Resolution

0.1 °C / °F

Accuracy

± 0.5 °C / ± 0.9 °F

Calibration Option

Yes

Memory Data

500

Auto Data Log

Yes

Measurement Modes

Auto Stable, Auto Hold, and Real time

Offset & Average Slope Display

Yes

Calibration Alarm

Yes (Programmable: Up to 90 days)

Auto Shut-Off

Yes (Programmable: Up to 30 minutes)

Electrode Status

Yes (On screen display)

Diagnostic Messages

Yes

Meter Inputs

BNC (for pH electrode), phono (for temperature sensor)

Display

Custom LCD with backlight

Housing

IP67 rating, shock & scratch resistant, non-slip

Power Requirement

2 x AA batteries

Battery Life

> 500 hours

Meter Dimensions

160 (L) x 80 (W) x 40.60 (H) mm

Meter Weight

Approx. 260 g (with batteries) / 216 g (without batteries)
