Ammonia Nitrogen Meter HC-200NH

Overview

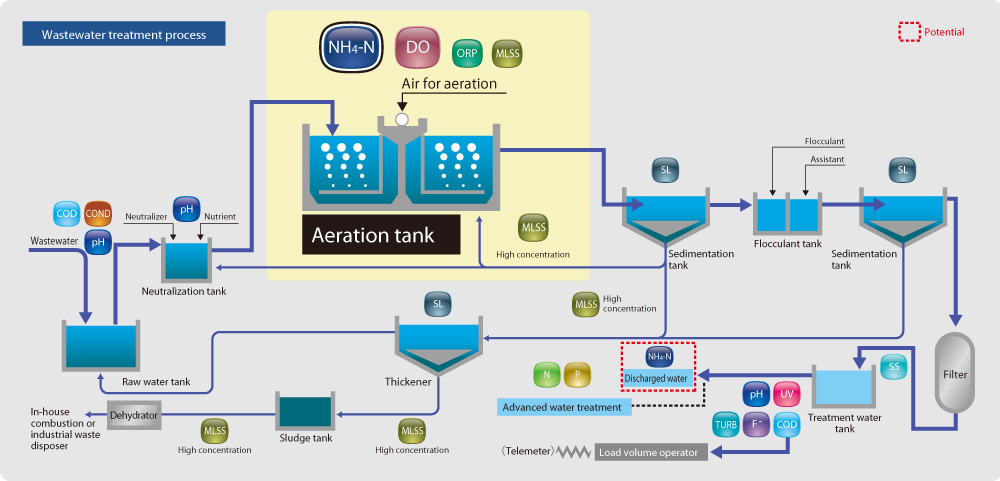

HC-200NH is an ammonia nitrogen(NH₄-N) meter using ion electrode method which is designed for aeration control in wastewater treatment.

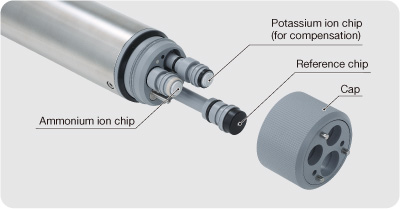

Replaceable chip without the need for tools

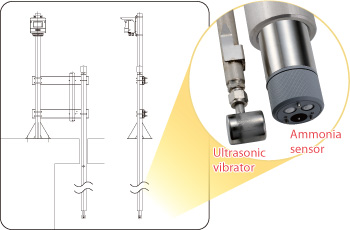

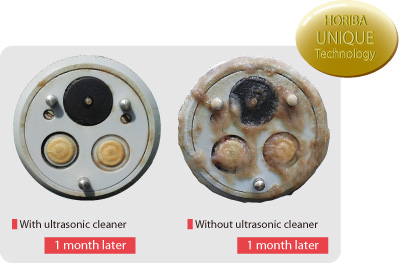

Combination with new-type ultrasonic cleaner improves antifouling property (optional)
[Burst oscillation method]
Enables continuous cleaning without damaging sensor, and long term adhesion prevention of stain.

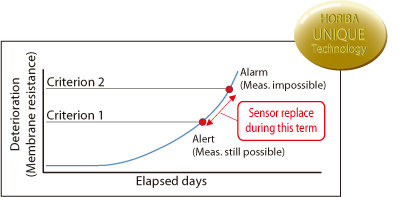

Sensor deterioration diagnostic during measurement ^*1Deterioration diagnostic function during continuous measurement. This function reduces the risk of sudden loss of measurement and provides more reliable measurement.
Optical DO sensor connectable (optional)
The ion sensor enables long term stable measurement
New ion chip internal solution enables stable measurement (Japan patent No. 5144829)
New structure of reference chip achieves stability measurement ^*2

*1: patent applied with Bureau of Sewerage Tokyo Metropolitan Government.
*2: patent applied

Manufactured by HORIBA Advanced Techno

Model	HC-200NH

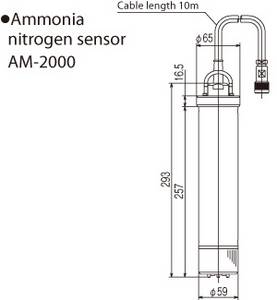

Combination sensor unit model	AM-2000
Sensor model	7691: Ammonium ion chip, 7692: Potassium ion chip for compensation, 7211: Reference chip
Measurement range	NH₄-N: 0~1000mg/L (display range: 0~2000mg/L) Temperature: 0~40°C (display range: -10~110°C)
Display resolution	NH₄-N: 0.01mg/L: 0.00~10.00mg/L 0.1mg/L: 0.0~100.0mg/L 1mg/L: 0~1000mg/L Temperature: 0.1°C
Repeatability	NH₄-N: Larger value between 3%±1 digit of measured value or 0.2mg/L±1 digit (with standard solution) Temperature: ±0.3°C
Potassium ion compensation	Compensation range: Potassium ion concentration is under 10 times of ammonium ion concentration and under 1000mg/L Compensation error: ±20% (measured value)
Additional function	Adjustment with manual analysis (1 point), calibration curve input function (primary expression)
Self-diagnostic function	Correction error, sensor diagnostic error, transmitter malfunction

*Sensor7691 and 7692 : Store in low temperature (1〜30°C)

Combination sensor unit model	DO-2000
Sensor model	5700A: Sensor cap
Measurement range	Dissolved oxygen concentration: 0~20mg/L Display resolution 0.01mg/L Saturation degree: 0~200% Display resolution 0.1% Temperature: 0~50°C Display resolution 0.1°C
Self-diagnostic	Correction error, sensor diagnostic error, transmitter malfunction

Transmission output	3 points DC4~20mA input-output insulation type Maximum load resistance 900Ω Select 3 items from below Output range 1: Ammonia nitrogen concentration: Configurable within measurement range. Output range 2: Dissolved oxygen concentration: Configurable within measurement range. Output range 3: Temperature reading of the ammonia nitrogen meter: Configurable within measurement range of -10~110°C Output range 4: Temperature reading of the dissolved oxygen meter: Configurable within measurement range of -10〜110°C.
Operation temperature range	-20~55°C (Do not freeze)
Power	AC100~240V 50/60Hz Consumption power 28VA (max)

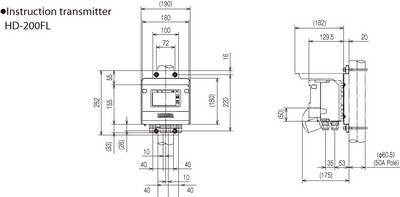

Structure	Outdoor installation type: Protection level IP65 Installation method: 50A pole or attached to wall Case: aluminum alloy Attachment bracket: Hood: SUS304
Weight	Unit: Approx. 3.5kg Hood, attachment bracket: Approx. 1kg
Compliance standard	CE Marking, FCC Rules

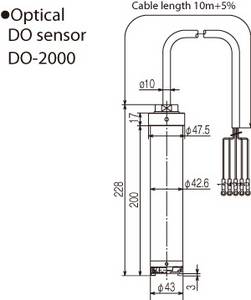

Sensor unit model	DO-2000
Measurement sample temperature	0~50°C
Measurement depth	10m
Wetted material	SUS316, NBR, PVC
Weight	Approx. 3.0kg (including 10m cable)
